Structured cabling

Cat6A cabling for a warehouse

A warehouse cabinet installation with Cat6A structured cabling and cable runs to 22 access points. Follow the work from the original cabinet to completion.

See the installation
A wider view of the completed cabinet installation.COMPLETED BY MK TECHNOLOGIES

THE PROJECT

What we did.

We installed the cabinet and Cat6A structured cabling, with cable runs to 22 access points throughout the warehouse. This photo sequence follows the original cabinet, the installation stages and the completed patching.

SCOPE OF WORK

  • Network cabinet installation
  • Cat6A structured cabling
  • Cable runs to 22 warehouse access points
  • Patch panel termination and cabinet patching

A CLOSER LOOK

The installation in pictures.

Select a photo to view it larger.

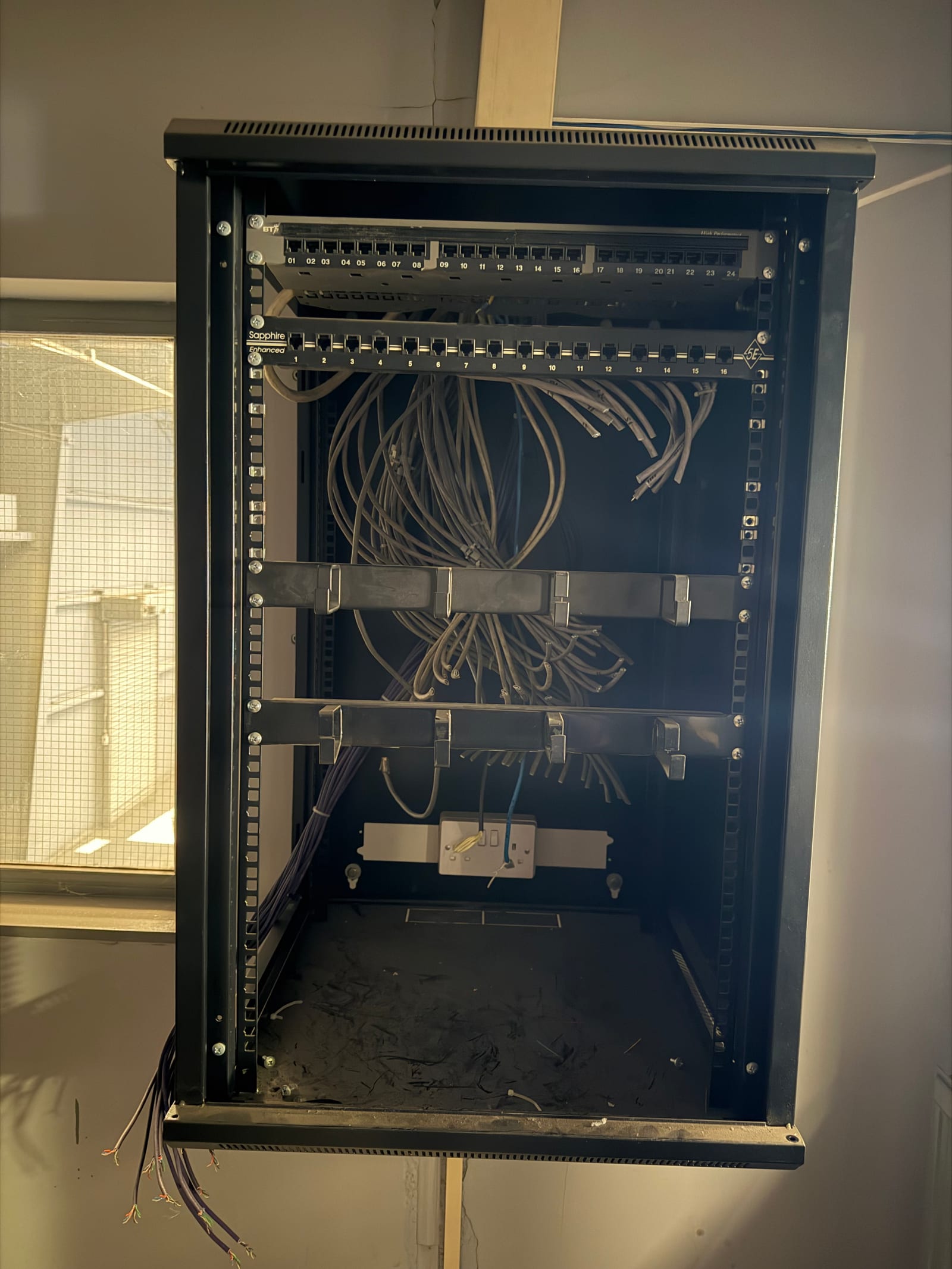

The original cabinet before the installation work.Before
01The original cabinet before the installation work.

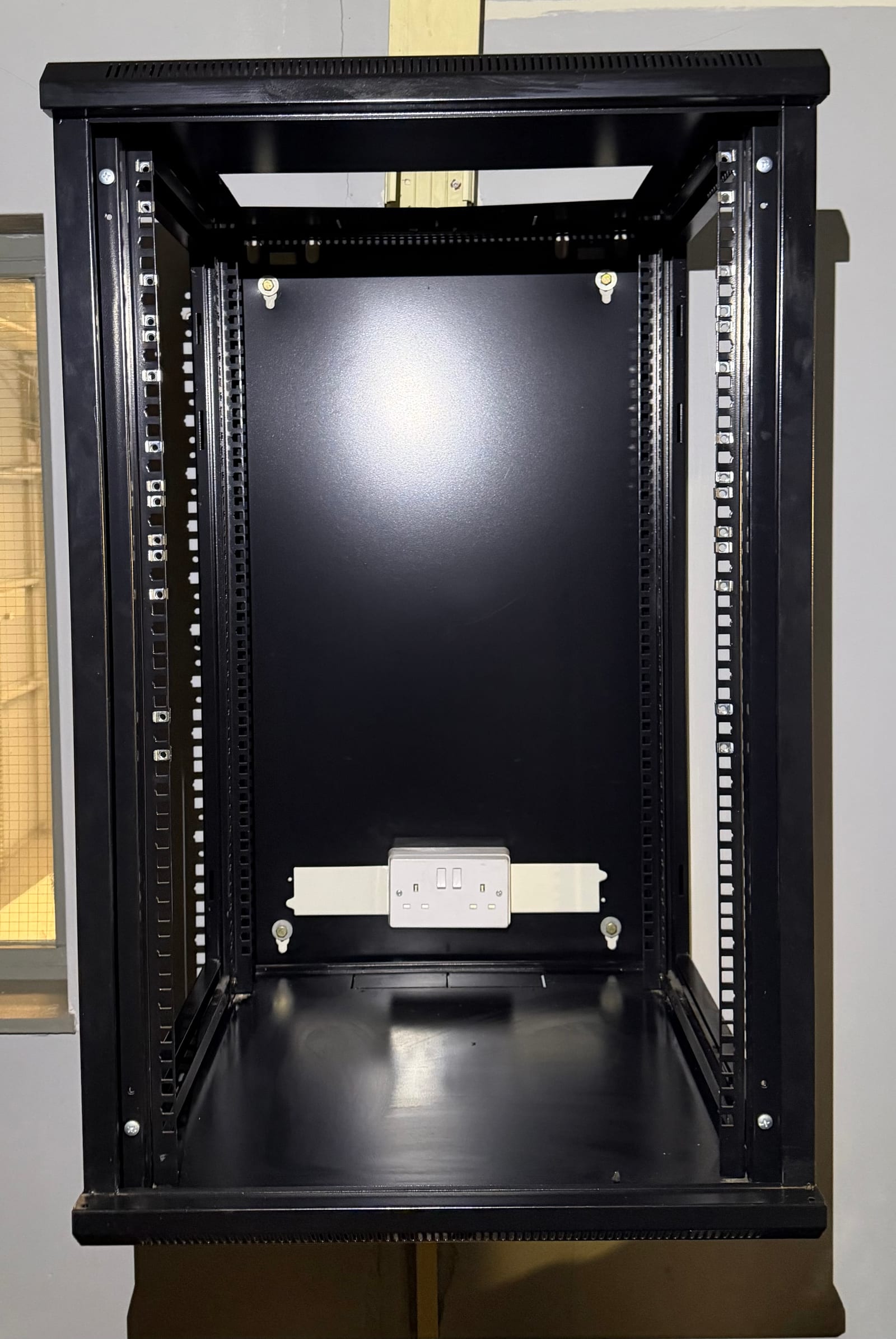

The new cabinet prepared for the cabling.In progress
02The new cabinet prepared for the cabling.

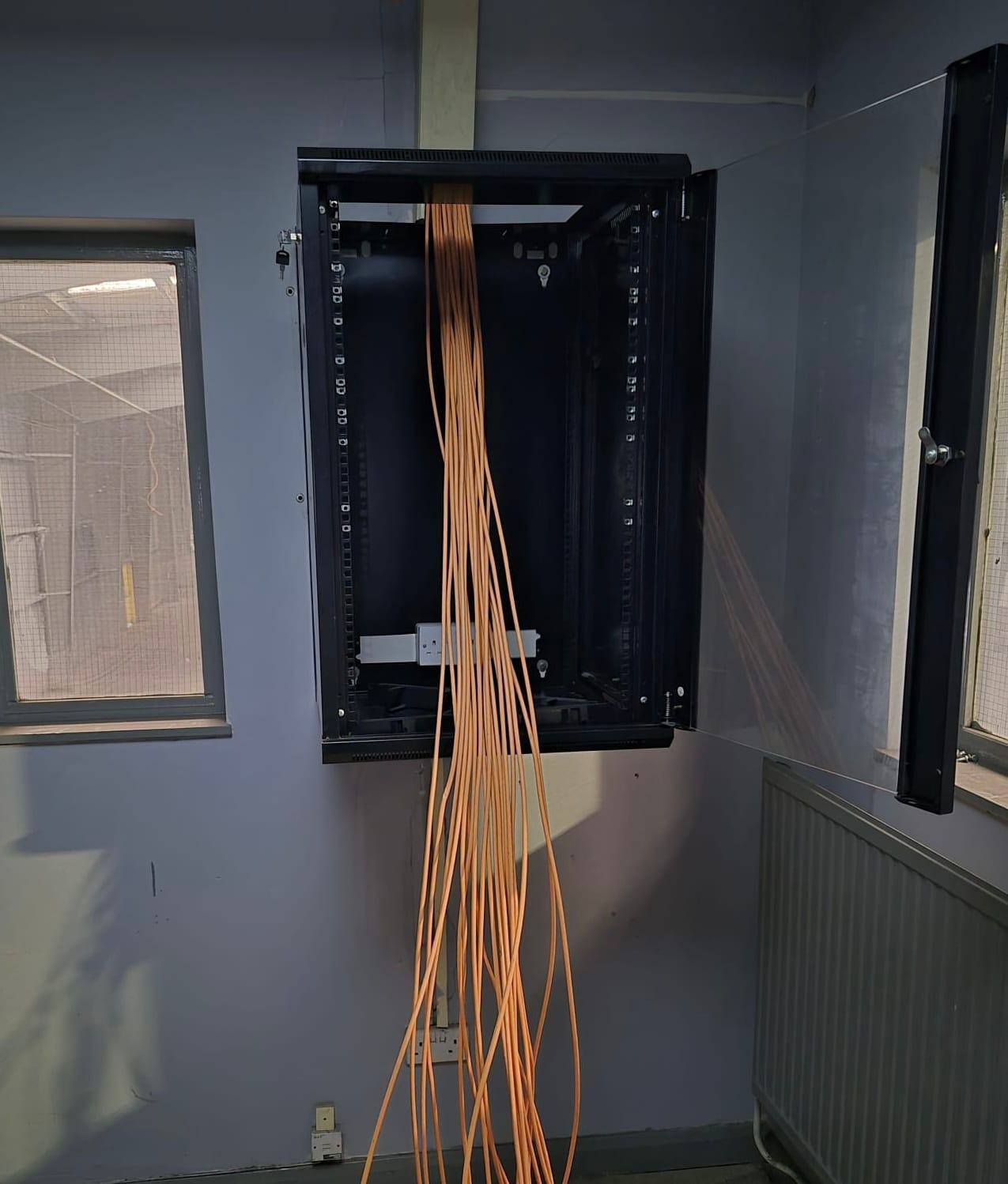

Cable runs brought into the cabinet before termination.In progress
03Cable runs brought into the cabinet before termination.

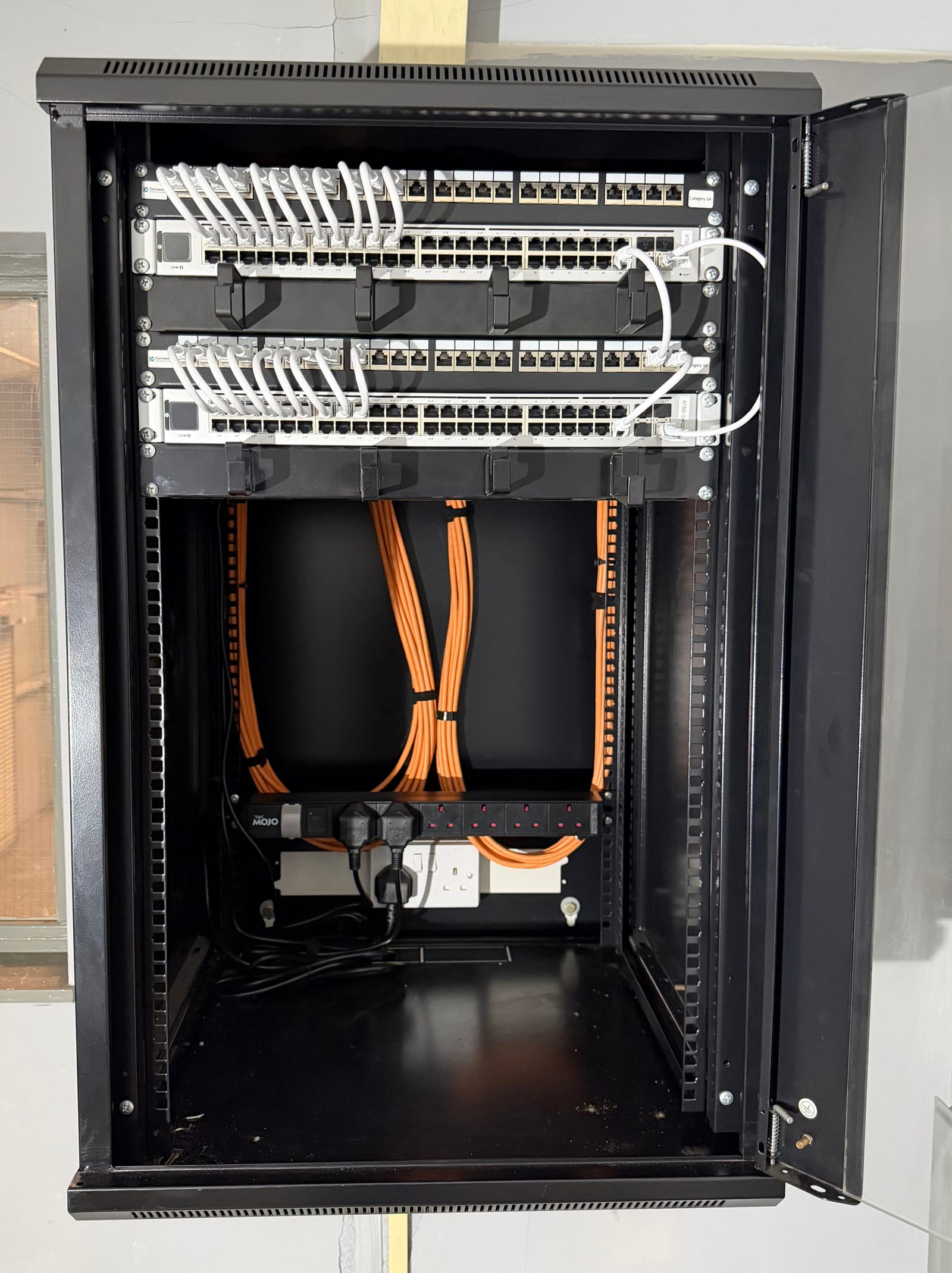

The cabinet after termination and patching.After
04The cabinet after termination and patching.
A wider view of the completed cabinet installation.After
05A wider view of the completed cabinet installation.

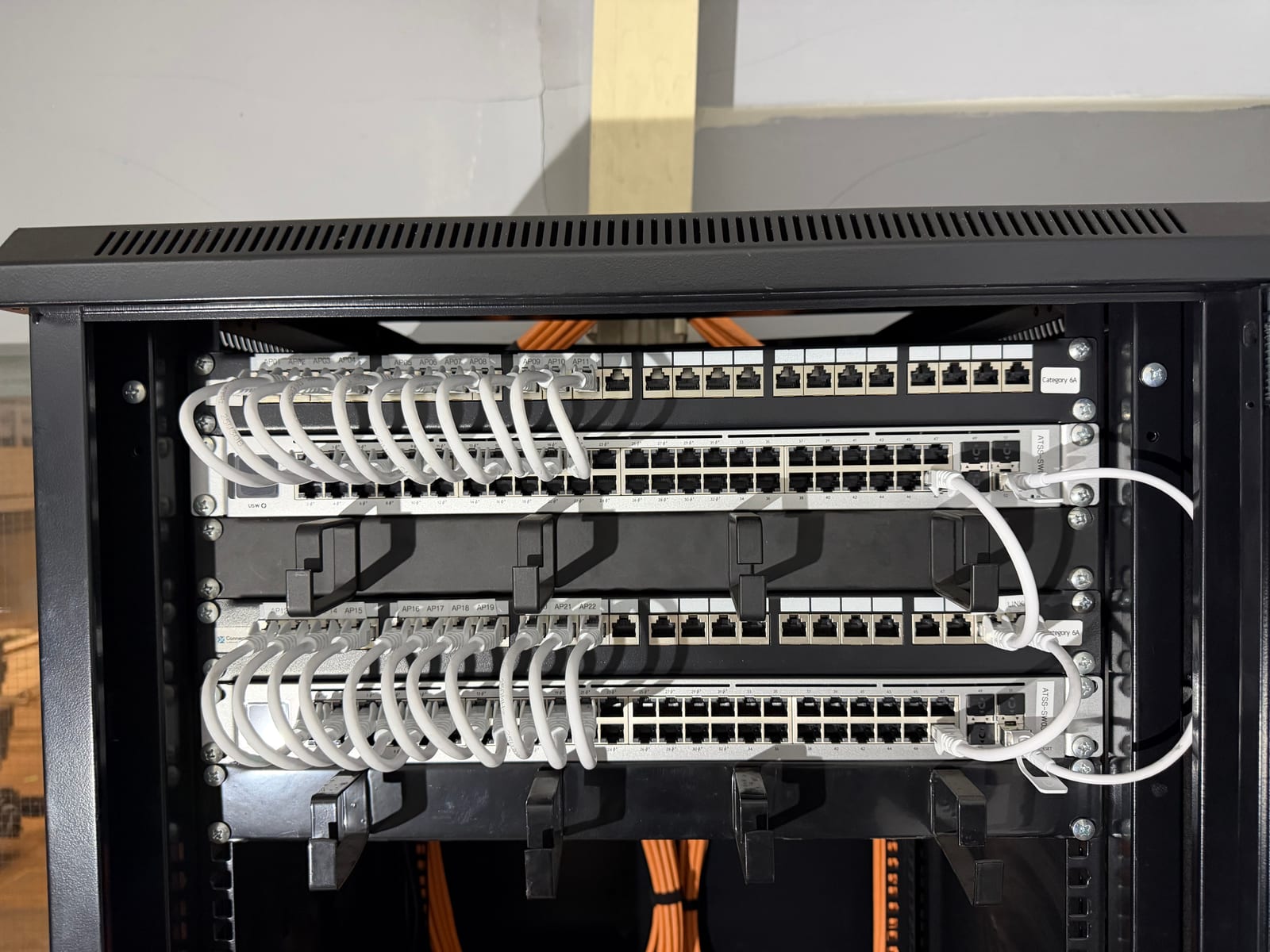

Detail of the finished patch panels and connections.After
06Detail of the finished patch panels and connections.
